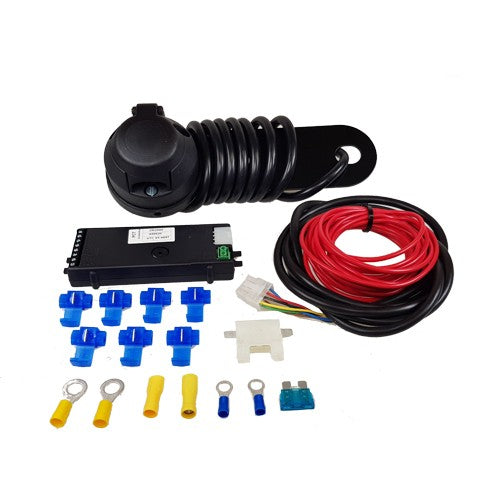

Maypole 12N 7 Way Bypass Relay Wiring Kit with PCT ZR2500 Relay – 3816B

Maypole 12N 7 Way Bypass Relay Wiring Kit with PCT ZR2500 Relay. Product reference: 3816B.

Specifications and application

• 12N Pre-wired 7 Pin Socket 1.5m cable
• 5m x 3.0mm 27 Amp Single Core Cable
• 5m x 2mm Red Core Cable
• 7 x Blue Snap Connectors
• 2 x 6.4mm Blue Pre-insulated Ring Terminal
• 2 x 8.4mm Yellow Pre-insulated Ring Terminal
• 2 x 6.4mm Yellow Pre-insulated Blade Terminal
• 1 x Inline Blade Fuse Holder
• 1 x 15 Amp Blade Fuse
• PCT ZR2500 Logicon Relay
• Kit contents:
• Instructions included

Fitment and use

Check the connector type, pin count, voltage and vehicle or trailer application stated for this item.

Need help identifying the correct part? Contact BTP on 01793 239 039 with the original part reference or trailer chassis number.
