Maypole Longlife Quick Connect Bowden Cable for AL-KO Brakes

Trailer model applications

Brian James T Transporter 231: 41211, 41216 are options for trailers fitted with the corresponding AL-KO brake, cable or hub specification. Select the size fitted to your trailer; the alternatives on this page do not all fit the same configuration.

Confirm the chassis specification and original component. Wheel diameter alone does not identify the correct brake or bearing.

Genuine and aftermarket alternatives

Compare the genuine Brian James, genuine AL-KO and Maypole aftermarket options below. Budget Maypole options are identified separately; kit contents and packaging may differ.

AL-KO quick-connect brake cable — 770mm outer

Selected part reference: 41207.

• Genuine AL-KO — A247283

AL-KO/Maypole cable: 770mm sheath, 966mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

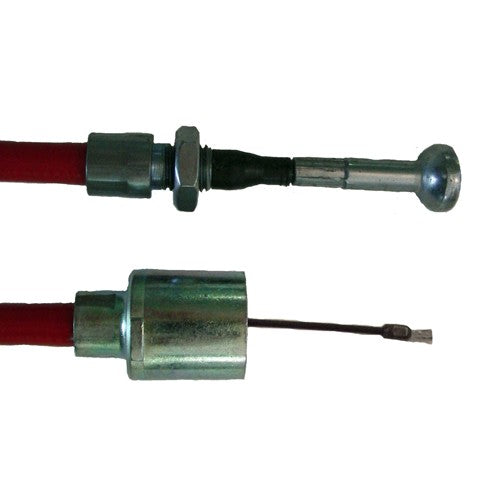

AL-KO quick-connect brake cable — 890mm outer

Selected part reference: 41208.

• Genuine AL-KO — A247284

AL-KO/Maypole cable: 890mm sheath, 1086mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

AL-KO quick-connect brake cable — 1020mm outer

Selected part reference: 41210.

• Genuine AL-KO — A247285

AL-KO/Maypole cable: 1020mm sheath, 1216mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

AL-KO quick-connect brake cable — 1130mm outer

Selected part reference: 41211.

• Genuine AL-KO — A247286
• Genuine Brian James — P-BRTR-6070-P-N

AL-KO/Maypole cable: 1130mm sheath, 1326mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. The Brian James catalogue lists the 1130mm nipple-to-mushroom cable; check this against the original before choosing an alternative. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

AL-KO quick-connect brake cable — 1320mm outer

Selected part reference: 41213.

• Genuine AL-KO — A247287
• Genuine Brian James — P-BRTR-6060-P-N

AL-KO/Maypole cable: 1320mm sheath, 1516mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. The Brian James catalogue lists the 1320mm nipple-to-mushroom cable; check this against the original before choosing an alternative. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

AL-KO quick-connect brake cable — 1430mm outer

Selected part reference: 41214.

• Genuine AL-KO — A247288

AL-KO/Maypole cable: 1430mm sheath, 1626mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

AL-KO quick-connect brake cable — 1620mm outer

Selected part reference: 41216.

• Genuine AL-KO — A247289
• Genuine Brian James — P-BRTR-6080-P-N

AL-KO/Maypole cable: 1620mm sheath, 1816mm inner; Maypole bell 26mm external / 23.5mm internal. Confirm both end fittings and inner length. The Brian James catalogue lists the 1620mm nipple-to-mushroom cable; check this against the original before choosing an alternative. Old-style detachable cables with a different inner length are not interchangeable merely because the sheath length matches.

These are alternatives for the stated specification, not a guarantee of fitment to every trailer carrying the model name. Match the original part, brake or coupling identification and dimensions before ordering.
