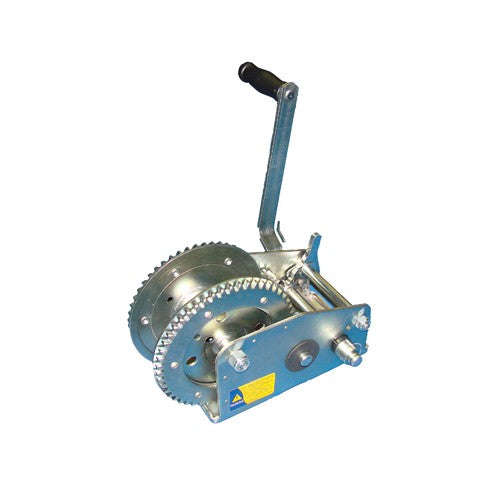

Maypole 1454Kg / 3200Lb Professional Hand Winch – 1432

Maypole 1454Kg / 3200Lb Professional Hand Winch. Product reference: 1432.

Specifications and application

• 2 speeds geared for optimal winching speed versus effort (mechanical advantage)
• 500hr red-rust resistant plating, suitable for marine use
• CE Rated Working Capacity: 750kg
• Max Rolling Load: 1950Kg
• Manufacturer’s Recommended Max. Capacity: 1454kg / 3200LB
• Speeds: 2
• Gear Ratio: 5.1:1 / 12.1:1
• Min / Max Mechanical Advantage: 86:1 / 203:1
• Operating Force Required: 8.72kg / 3.69kg
• Finish – Salt Spray Test Red Rust Resistance: 500 hour
• Heavy-duty construction for pulling heavy loads
• A great alternative to Dutton-Lainson and Fulton
• Solid gear construction
• Two-way ratchet with precise gear tooth engagement
• Hand brake supplied as standard on all models
• Universal drum will accept a cable or strap (not supplied)
• Accessories and spares available
• CE & UKCA approved
• Brake supplied
• Drive Gear: Dual

Fitment and use

Match the brake manufacturer and brake type. For cables, check inner and outer lengths and both end fittings; for shoes and drums, check drum diameter and shoe width.

Need help identifying the correct part? Contact BTP on 01793 239 039 with the original part reference or trailer chassis number.
