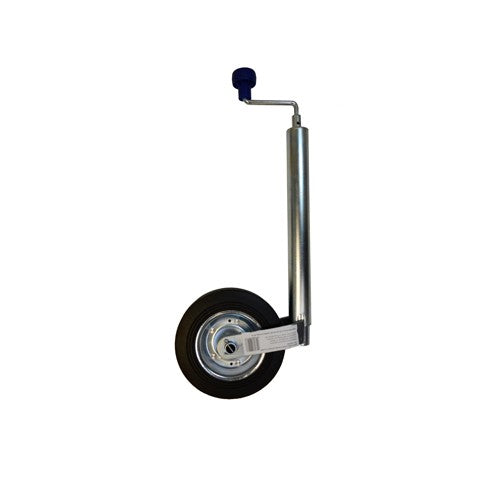

Maypole 42mm 100Kg Standard Duty Jockey Wheel – 227

Maypole 42mm 100Kg Standard Duty Jockey Wheel. Product reference: 227.

Specifications and application

• Constructed for standard duty applications, up to 100kg static nose weight, such as small leisure trailers
• 42mm outer tube diameter
• Height extension range 240mm
• Handle extension 105mm
• Tyre size 200x48mm
• Max static load with clamp 100kg
• Box / stillage qty : 4 / 160
• MP228 – 200mm Steel Wheel For Jockey Wheels
• Wire handle with blue plastic grip; allows for more clearance when in use
• Solid rubber tyre and steel rim
• Clear zinc plate finish
• Not supplied with a clamp
• Replacement wheel

Fitment and use

Check the tube diameter, clamp fitment, mounting dimensions and rated load for the intended application.

Need help identifying the correct part? Contact BTP on 01793 239 039 with the original part reference or trailer chassis number.
