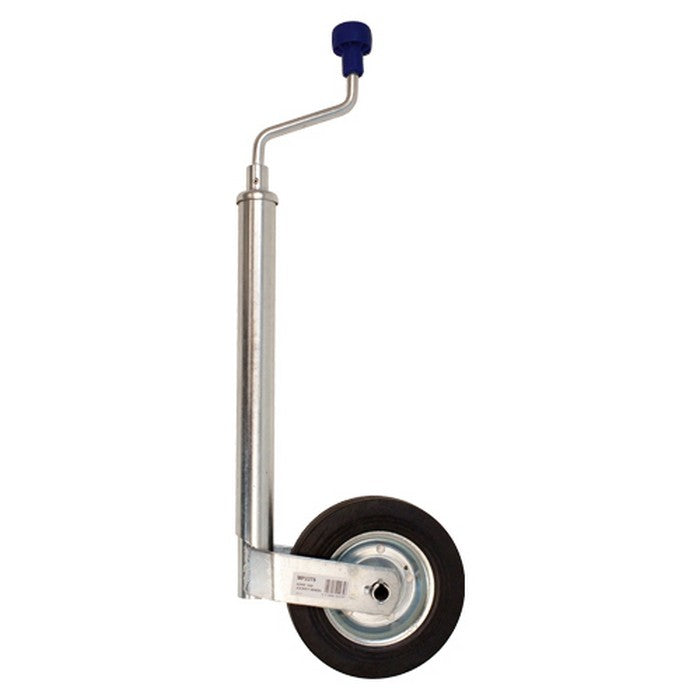

Maypole 42mm 150Kg Medium Duty Telescopic Jockey Wheel – 2275

Maypole 42mm 150Kg Medium Duty Telescopic Jockey Wheel. Product reference: 2275.

Specifications and application

• Constructed for medium duty trailer applications up to 150kg static nose weight
• 42mm outer tube diameter
• Height extension range 240mm
• Handle extension 95mm
• Tyre size 200x48mm
• Max static load with clamp 150kg
• Box / stillage qty : 4 / 170
• Supplied without a clamp
• Short-reach wire handle with blue plastic grip gives unrestricted rotation close to the handbrake
• Ball race handle bearing provides smooth and easy rotation
• When fully retracted the outer tube engages with the wheel forks to prevent rotation
• Solid rubber tyre and steel rim
• Clear zinc plate finish
• Replacement wheel MP228
• Replacement clamp MP224

Fitment and use

Check the tube diameter, clamp fitment, mounting dimensions and rated load for the intended application.

Need help identifying the correct part? Contact BTP on 01793 239 039 with the original part reference or trailer chassis number.
