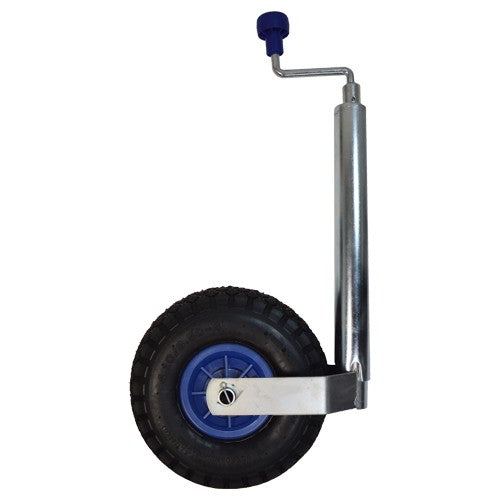

Maypole 48mm 100Kg Pneumatic Telescopic Jockey Wheel – 437

Maypole 48mm 100Kg Pneumatic Telescopic Jockey Wheel. Product reference: 437.

Specifications and application

• Constructed for standard duty applications, up to 100kg static nose weight, such as boat trailers
• 48mm outer tube diameter
• Height extension range 240mm
• Handle extension 110mm
• Tyre size 260x64mm
• Max static load with clamp 100kg
• Box / stillage qty : 4 / 100
• MP424 48mm Standard Duty Split Clamp – Maypole
• Suitable clamp
• MP229 260mm Pneumatic Rubber / Plastic Wheel
• MP2295 260mm Flat Free PU Foam / Plastic Wheel Fits MP437
• Retro-fit flat free wheel
• Wire handle with plastic blue grip; allows for more clearance when in use
• Wide pneumatic tyre prevents sinkage into soft ground and is easy to use on gravel surfaces
• Clear zinc plate finish
• Replacement wheel

Fitment and use

Check the tube diameter, clamp fitment, mounting dimensions and rated load for the intended application.

Need help identifying the correct part? Contact BTP on 01793 239 039 with the original part reference or trailer chassis number.
