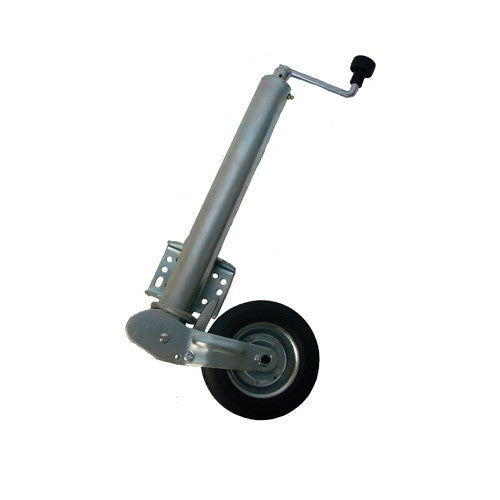

Maypole 60mm 300Kg Auto Fold Jockey Wheel – 977

Maypole 60mm 300Kg Auto Fold Jockey Wheel. Product reference: 977.

Specifications and application

• Constructed for heavy duty trailer applications up to 300kg static nose weight
• 60mm outer tube diameter
• Height extension range 490mm
• Handle extension 130mm
• Tyre size 200x40mm
• Max static load with clamp 300kg
• Box / Stillage qty : 2 / 100
• Supplied with integral mounting plate (100 x 130mm) for easy fitting onto the trailer
• MP228 200mm Steel Wheel For Jockey Wheels
• For example, Car transporter, Horse box, Livestock, Plant, Twin axle trailers
• Wheel is raised automatically during retraction & locks in the raised position. It is released automatically when wound down again with the handle.
• Ball-race handle bearing ensures smooth and easy handle rotation
• Grease nipple bearing lubrication inlet
• Solid rubber tyre & steel rim
• Zinc plate finish
• Replacement wheel

Fitment and use

For wheels and tyres, check size, load rating, PCD and offset against the original specification. For mudguards, check dimensions and mounting clearance.

Need help identifying the correct part? Contact BTP on 01793 239 039 with the original part reference or trailer chassis number.
