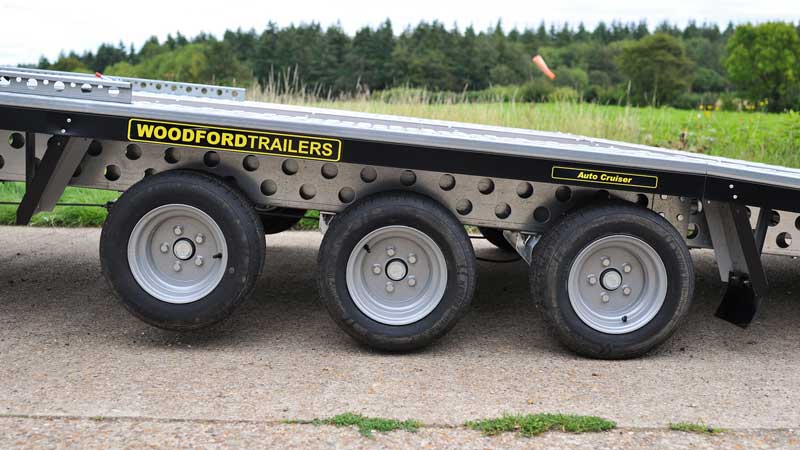

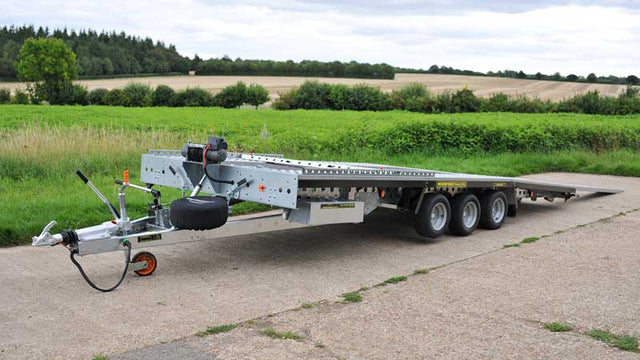

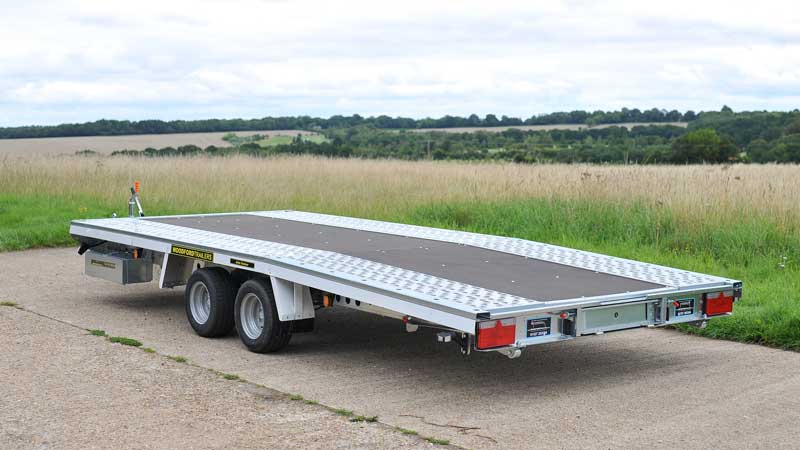

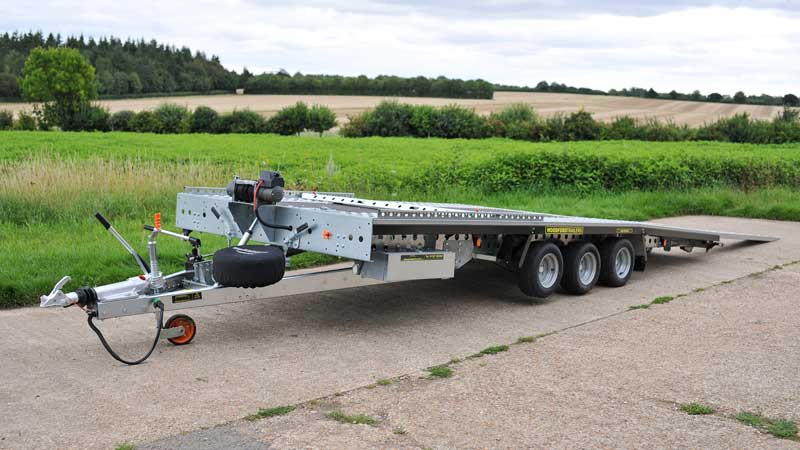

Woodford Auto Cruiser AC2035003 3500kg Car Transporter Trailer

An open car transporter with a lightweight chassis, loading ramps and accessible side rails for securing your vehicle.

Model AC2035003

• Bed dimensions: 20’x7’3″ 6100 x 2220
• Load (kg): 2550
• Gross (kg): 3500
• Empty trailer weight (kg): 950
• Axles: 3
• Wheel size: 10
• O/ width (mm): 2220
• O/ length (mm): 7500
• Loading angle (kg): 11
• Bed height (mm): 600

Standard equipment

• Spare wheel and bracket
• LED lights
• Loading ramps and supporting legs
• Side rails with regular strapping points
• Storage box
• 50mm ball coupling with barrel lock and safety ball

Optional extras

Optional extras are additional to the trailer price. Prices below include 20% VAT, with ex-VAT prices shown in brackets.

• Warrior Samurai Next Gen 12000 Winch 12v Synthetic (120VA12F) — Price on request
• Samurai Next Gen 12000 Winch 12v Steel Rope (120VS12F) — Price on request
• WARRIOR NINJA 2500 winch 12V Steel rope (25SPS12F) — Price on request
• Warrior Ninja 3500 winch synthetic rope (35SPA12F) — Price on request
• WARRIOR NINJA 3500 winch 12V Steel rope (35SPS12F) — Price on request
• Warrior Ninja 4500 winch 12v Synthetic rope (45SPA12F) — Price on request
• WARRIOR NINJA 4500 WINCH 12v Steel rope (45SPS12F) — Price on request
• Warrior Samurai Next Gen 9500 winch 12v Synthetic (950VA12F) — Price on request
• Warrior Samurai next gen 9500 winch 12v Steel rope (950VS12F) — Price on request
• Samurai Next Gen 9500 Short Drum Winch 12V Steel (95DVA12F) — Price on request
• Centre deck storage (underfloor storage) (OP002) — Price on request
• 2 JERRY CAN HOLDER/FUEL BOX (OP006) — £139.20 inc VAT (£116.00 ex VAT)
• STRAP BOX 9 WEIGHT 9.2 KG (OP009) — £138.00 inc VAT (£115.00 ex VAT)
• SET OF 4 MEDIUM DUTY STRAPS WITH LOOPS (OP014) — £91.20 inc VAT (£76.00 ex VAT)
• SET OF 4 HEAVY DUTY STRAPS WITH LOOPS (OP015) — £110.40 inc VAT (£92.00 ex VAT)
• SET OF 4 HEAVY DUTY STRAPS (OVERWHEEL) (OP015/1) — £110.40 inc VAT (£92.00 ex VAT)
• MANUAL 2 SPEED WINCH 2500LB (OP019) — Price on request
• MANUAL SINGLE SPEED WINCH 3200LB (OP020) — Price on request
• MANUAL SINGLE SPEED WINCH 3500LB (OP021) — Price on request
• WIRELESS REMOTE CONTROL FOR ELECTRIC WINCH (OP031) — Price on request
• Headboard (OP050) — Price on request
• MANUAL HYDRAULIC TILT (OPMPO1) — £504.00 inc VAT (£420.00 ex VAT)
• 11500LB EL WINCH WITH SYNTETIC ROPE (WK11512SF) — Price on request
• 11500LB WINCH 51kN 12V WINCH STEEL WIRE (WK11512WF) — Price on request
• 13500 LBSC 12V WINCH STEEL WIRE (WK13512WF) — Price on request
• 4500LB 12V WINCH SYNTETIC ROPE (WK45012SBF) — Price on request
• 4500LB WINCH STEEL WIRE WITH WIRED CONTROLLER (WK45012WBF) — Price on request
• 9500LB SYNTHETIC ROPE 42.3KN 12V (WK95012SF) — Price on request
• 9500LBS 42.3KN 12V WINCH STEEL WIRE (WK95012WF) — Price on request
• 7’3″ (2220MM) RAMP TAILGATE ( UPGRADE) (WTRTG220) — Price on request
• Spare wheel soft cover (WTSWC) — £28.80 inc VAT (£24.00 ex VAT)
• ADJUSTABLE FULL WIDTH WHEEL STOP WITH TWO RAILS (WTWC) — £237.60 inc VAT (£198.00 ex VAT)
• Soft winch cover for electric winch (WTWSC) — £28.80 inc VAT (£24.00 ex VAT)
• Manual Hydraulic tilt system (OPMP01) — £504.00 inc VAT (£420.00 ex VAT)
• Set of 4 medium duty straps over wheel 1000kg each (OP014/1) — £91.20 inc VAT (£76.00 ex VAT)
• Adjustable tyre rack (weight 39kg max height 1000mm) (OP016) — £327.60 inc VAT (£273.00 ex VAT)
• Electric winch 3500lb fitted with battery and battery storage (OP012) — £508.80 inc VAT (£424.00 ex VAT)
• Electric winch 4500lb fitted with battery and battery storage (OP011) — £649.20 inc VAT (£541.00 ex VAT)
• Electric winch 12000lb fitted with battery and battery box (OP010) — £870.00 inc VAT (£725.00 ex VAT)
• Short drum 9500lb electric winch with nylon cable (WTSDW) — £948.00 inc VAT (£790.00 ex VAT)
• Second spare wheel with bracket (OP026) — £189.60 inc VAT (£158.00 ex VAT)
• 10’ alloy wheel (upgrade) (OP029) — £74.40 inc VAT per wheel (£62.00 ex VAT)
• Assister ramps set of 2 aluminium (will reduce loading angle to 2 degrees) (OP030) — £189.60 inc VAT (£158.00 ex VAT)
• Formed ramps upgrade (additional cost to standard ramps) (WTFR) — £124.80 inc VAT (£104.00 ex VAT)
• Shock absorber (OP028) — £72.00 inc VAT per wheel (£60.00 ex VAT)
• Wider 7’3” (2200mm) note only AC185003 standard width 7’3” (OP055) — Price on request

Based on Woodford’s published website prices, checked 24 October 2026. Please confirm compatibility, availability and any fitting charges with BTP before ordering. Equipment already included in this trailer’s specification does not need to be added again.

Extras are priced separately. Compatibility and fitment depend on the trailer specification.

Available to order. Contact BTP to confirm availability and current pricing.

Manufacturer range photographs are illustrative and may show a different size or optional equipment. Confirm your chosen specification before ordering. Optional equipment can reduce available payload.
